14 inch SBOB MX-TBARS POWDERCOAT BLACK
14 inch SBOB MX-TBARS POWDERCOAT BLACK



Our Price: $310.00

Availability:: BACKORDER
Product Code: WCD642
Qty:

Description

Features of your MXTBARS 14" Risers SBOB

Metal: 1080 mild gauge steel tubing
Coating: POWDERCOAT
Color: BLACK

Internal wiring:
YES

Top Crossbar:
- 5 1/2" spread in the middle of the handlebar. Then bends and rises up 2" and then the 1-1/4" tubing is swaged (tapered) down to 1"diameter. (Fits conventional controls) - Both sides are dimpled with 5/8" Holes punched for internal wiring. - Cross width is 31 1/2" across and pullback is 3 1/2". - Your Wrist angle will be at a 18 degree angle Cross bar is welded to sit flat on a 28 degree rake - The (2) - 3/4" holes in middle of the bar are made to be centered for the 3 1/2 spacing of the risers.

Risers:
All cuts and holes are made by Laser cutting - 3 1/2" spacing between risers. - 1 1/4" at the top of the riser swaged (tapered) down to 1" diameter.

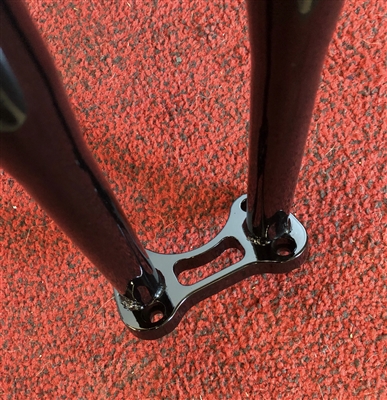

Original SBOB plate:
1/2" thick steel plate - The risers are pressed through the the plate at a 14 degree angle and TIG welded at the top of the plate and the bottom of the plate.

Keynotes:
These Handlebars are measured by overall height 12 inch risers with the 2 inch rise on the top cross bar equals 14 inches. - 6 total weld points
WE SUGGEST A +2 OVER STOCK CABLES FOR THIS BAR,
This SBOB model is specifically made for the 2008-2012 street bob HD made with the Integrated Triple Trees. If you have a 2007 and earlier or a 2013 and later then please go back and choose the standard Mxtbars.
